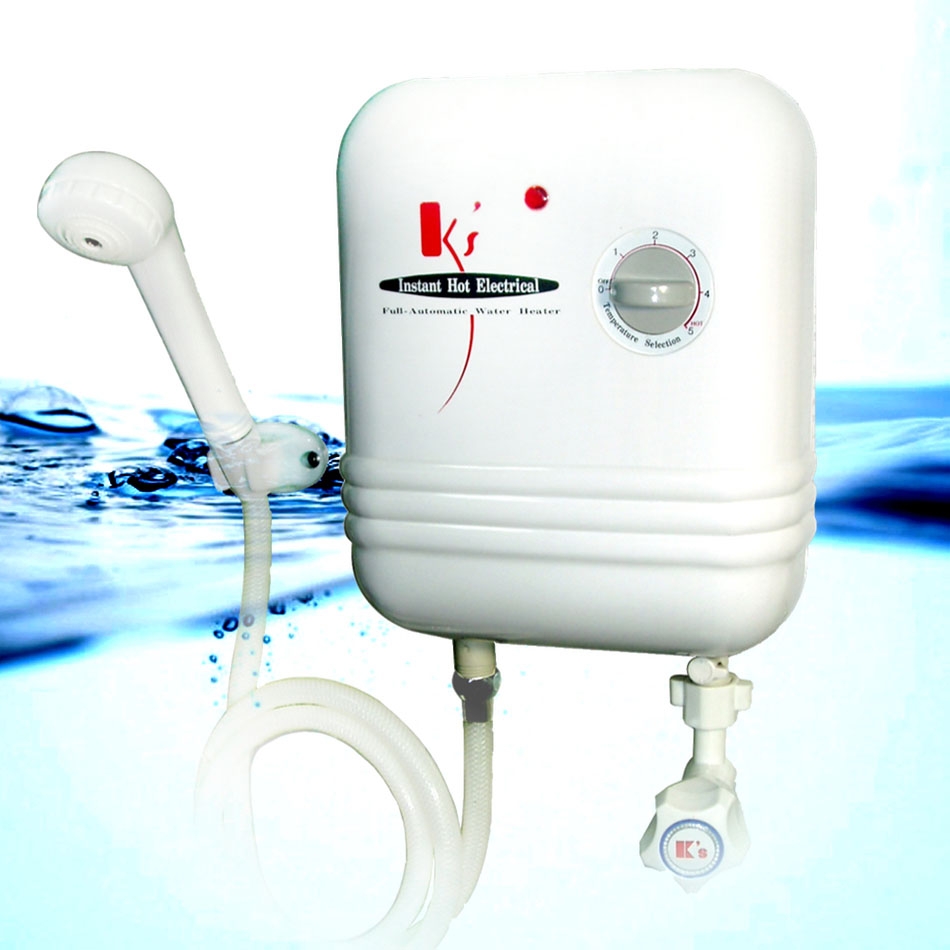

PRODUCTS Electric Tankless Water Heater
K’s-70B, 90 92, 94

K’s-70B, 90 92, 94

◆ Splash-proof enclosure, molded from Flame Retardant ABS
◆ 5-stage temp. selecting knob
◆ Thermal cut-out prevents from over heating
◆ Insulation type thermal control
◆ Built-in instantaneous heating element & temperature stabilizing circuitry
◆ PRV attached

◆ Splash-proof enclosure, molded from Flame Retardant ABS
◆ 5-stage temp. selecting knob
◆ Thermal cut-out prevents from over heating
◆ Insulation type thermal control
◆ Built-in instantaneous heating element & temperature stabilizing circuitry
◆ PRV attached

Electric Tankless Water Heater
K’s- series, Standard Features
◆ Human Engineering
Designed in accordance with human engineering for users can completely enjoy a relaxing shower.
◆ Endless Hot Water
Advantages include endless hot water, reduced electricity costs and substantial space savings.
◆ Built-in Instantaneous Heating Element
Instantaneous heating element and temperature stabilizing circuitry ensures an instant constant and smooth supply of hot water.
◆ 5-stages Temperature Selecting Knob
Household type with 5-stages temperature selecting knob makes users easily to adjust the water temperature according to seasonal variation.
◆ Structural strengthening heating Chamber with PRV attached
Structural strengthening heat exchanger increases the protection, which is attached with PRV (Pressure Relive Valve) for relieving pressure effectively


Specification:

Model
Voltage
Currency
Power
Measurement
Net weight
Water pressure
(kgf/cm2)
Water connection
VoltageK’s-70B
Voltage1Ø AC220V
Power23A
Measurement5KW
Net weight280mm(L)
230mm(W)
100mm(D)
Measurement3.6Kg
Water pressure
(kgf/cm2)
Min. 0.4 kgf/cm2
Max. 3 kgf/cm2
Water connectionSingle Point System
15 mm Dia. (1/2” BSP)
VoltageK’s-90
Currency1Ø AC220V
Power32A
Measurement7KW
Net weight280mm(L)
230mm(W)
100mm(D)
Measurement3.6Kg
Water pressure
(kgf/cm2)
Min. 0.4 kgf/cm2
Max. 3 kgf/cm2
Water connectionSingle Point System
15 mm Dia. (1/2” BSP)
VoltageK’s-92
Currency1Ø AC220V
Power40A
Measurement8.8KW
Net weight280mm(L)
230mm(W)
100mm(D)
Measurement3.6Kg
Water pressure
(kgf/cm2)
Min. 0.4 kgf/cm2
Max. 3 kgf/cm2
Water connectionSingle Point System
15 mm Dia. (1/2” BSP)
VoltageK’s-94
Currency1Ø AC220V
Power45A
Measurement9.9KW
Net weight280mm(L)
230mm(W)
100mm(D)
Measurement3.6Kg
Water pressure
(kgf/cm2)
Min. 0.4 kgf/cm2
Max. 3 kgf/cm2
Water connectionSingle Point System
15 mm Dia. (1/2” BSP)


■Remarks
●“L” mark following the model NO. (e.g. KS-96L) is built-in ELB for double ensuring safety of users.
●  Please apply at least 8 mm2 pipes and refer the installation manual.

■References for Purchasing
● The differences between K’s-70B, K’s-90, K’s-92, and K’s-94 are their Amperes (A) and Wattages (KW). The higher degree of ampere and power, the hotter water is allowed to offer.
● You may wish to choose a suitable model from K’s-70B, K’s-90, K’s-92, and K’s-94, based on the local electric voltage system and climate.


■ For quality you can trust
Quality is subjected to severe testing. Only products that withstand every test are placed on the market. In recognition of these untiring efforts, KING’S received certification of ISO9001. KING’S also received certification of CNS (Chinese National Standards, similar as UL approval), which is proved its reliability that engenders customers' confidence.
